Basic Info.

Product Description

1. Product Description

YX series high voltage three-phase induction motor is designed and developed by our company and it has more than 30 years experience history. With the improvement of insulation material performance of the motor in recent years, the application of low consumed silicon steel sheet, the enhancement of craftwork level, and the optimization and improvement of design, which have the ability to reduce all kinds of consumptions of motors, generally reduce over about 20%, thus increase the motor efficiency.

This series products adopt the high quality materials, good manufacturing process, have the characteristics of high efficiency, energy saving, small vibration, reliable operating and convenient for mounting and maintenance.

The power grade, electric property, mounting dimensions and tolerance are in coincident with International Electrical Committee standard IEC34-1 Rotating Electric Motor Rating and Property and machinery industry standards etc.

The enclosure protections of this series of motor include 5 types, i.e. IP23, IP44, IP54, IP55 and IP56 in accordance with the standard of the IEC34-5 Enclosure Protection Class of Rotating Electrical Machine. The IP23 motor can be changed to IP44 (pipeline ventilation) or IPW24 (climate protection type). If the users need other protection class, we may also provide relevant products.

The cooling method of this series of motor is IC01, IC81W and IC611 in accordance with the standards of IEC34-6 Cooling Methods of Rotating Electrical Machine. If the users need other cooling methods, we may also provide relevant products.

The protection class of the YX series motor (IC01) is IP23, YXKS series (IC81W), YXKK series (IC611) is IP44, which also can be made into IP54, IP55 and IP56.The structure and Installation method of this series of motor is IMB3 (horizontal with footing), which complies with the specifications of IEC 34-7 Motor Structure and Mounting Type Code.

This sample table lists the technical data and installation sizes of (H355~1120) 6kV, 10kV, IC01, IC81W, IC611 in YX, YXKK and YXKS series.

2. Application

This series of motor may be used for driving all kinds of  general machines such as the compressor, ventilation fan, water pump, stock-removing machine, transportation machines and other mechanical equipment, and are applied as the prime mover in all industrial and mining enterprises such as the mine, machinery, petrochemical industry and power plant, etc. If the users place an order for the motors that are used for driving the machines with huge rotary inertia such as the blower, coal grinder, rolling machine, crusher, belt machine, etc, they shall provide us with relevant technical data, sign the technical agreement with us as the basis for specific design of motor to ensure the reliable operation of motor.

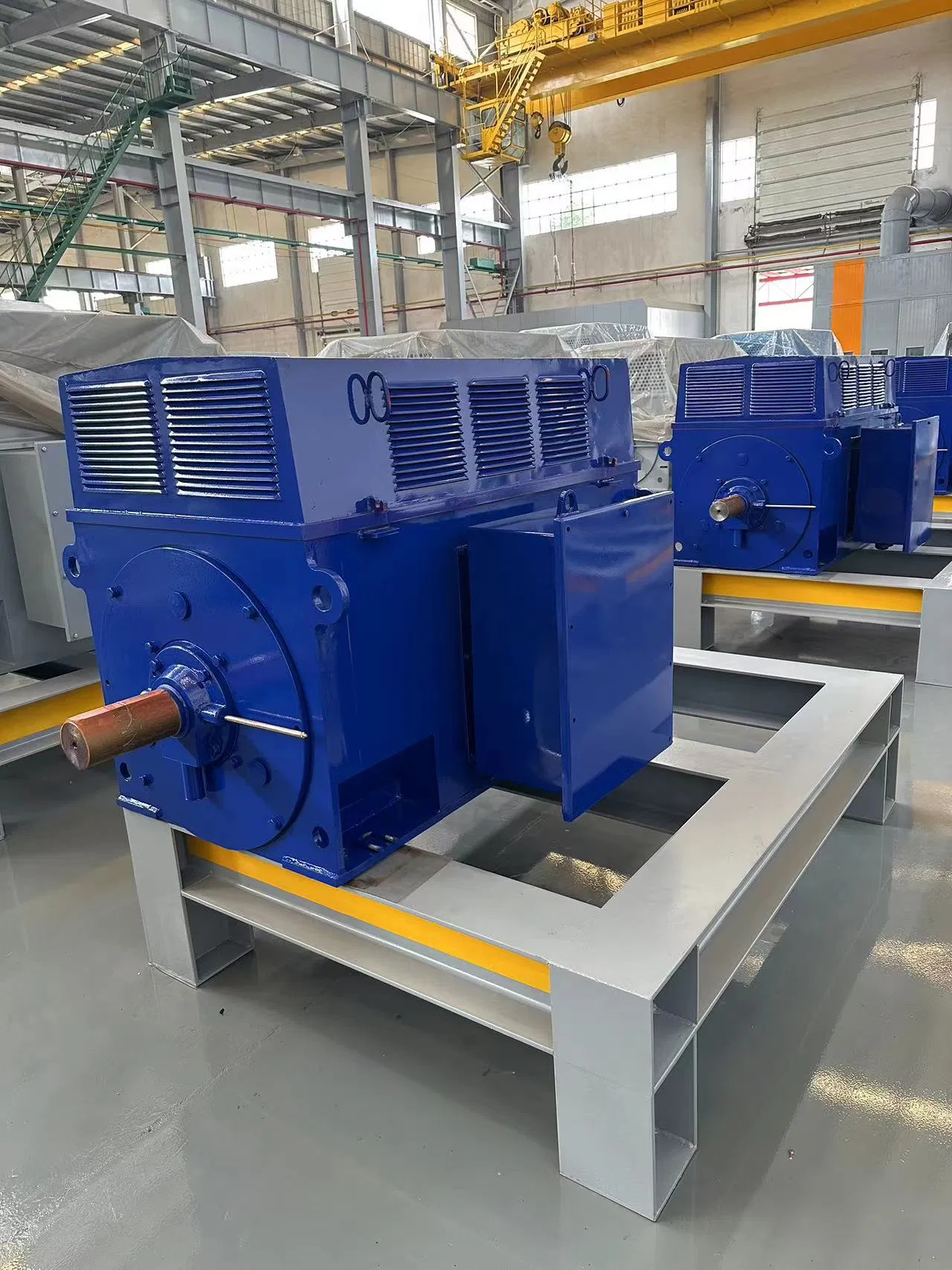

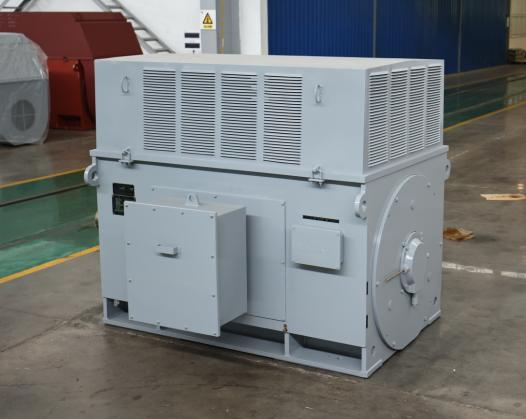

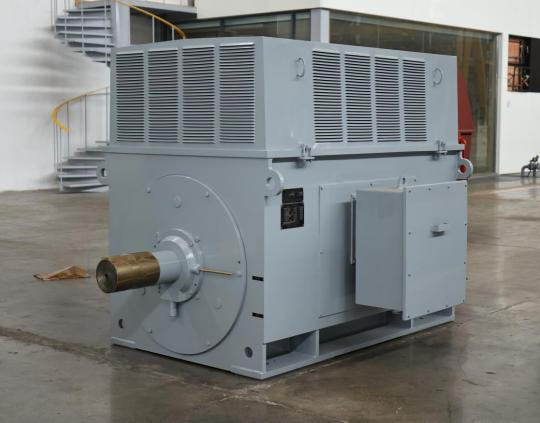

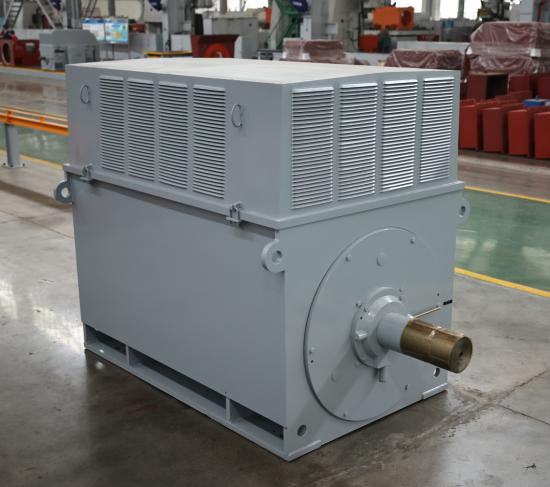

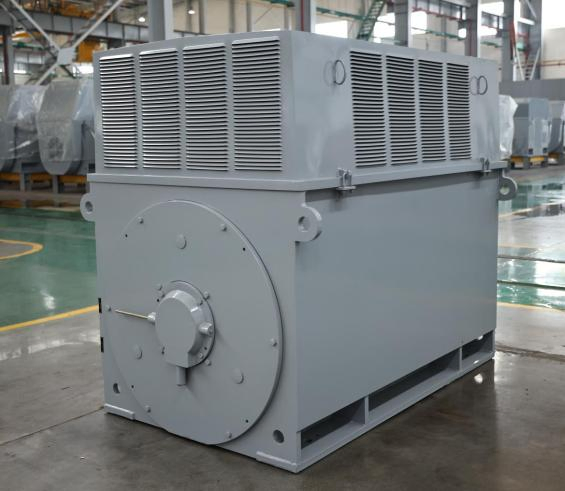

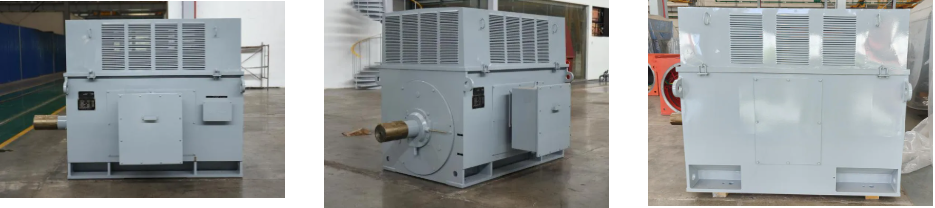

Detailed Photos

Certifications

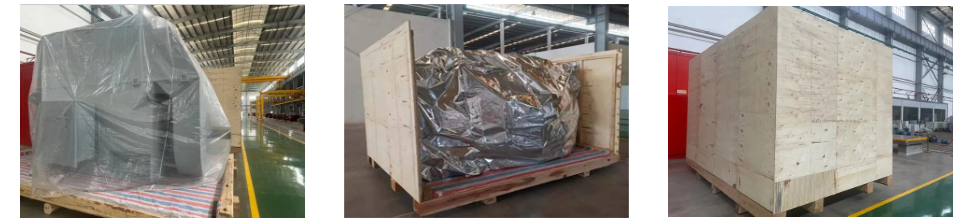

Packaging & Shipping

Standard seaworthy package for export
Plywood package or wooden fumigation package
Suitable for long distance transportation by sea

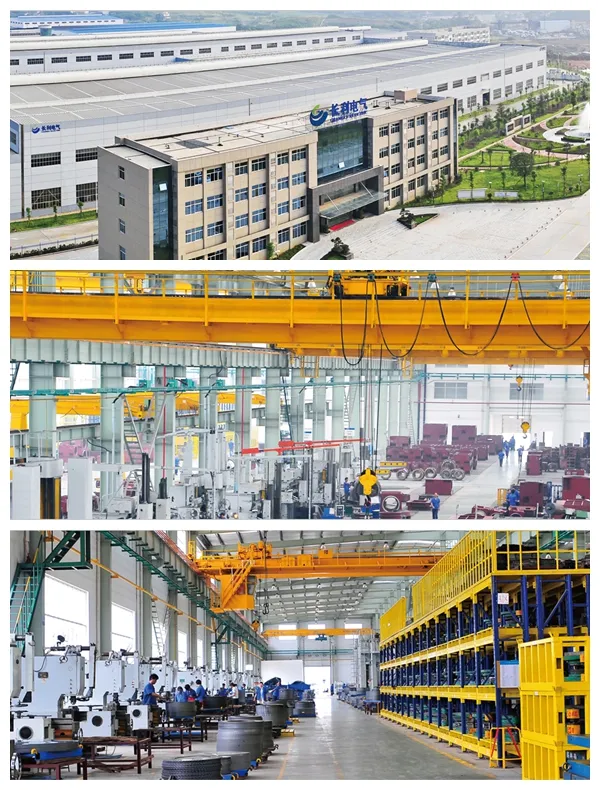

Company Profile

Located in Changsha, Changli Electric , a subsidary of Changli Group, which was formally known as Changsha Motor Factory founded in 1946, is a Top 10 electric motor manufacturer in China. With over 70 years′ production experience and research and development capabilities, we can produce a wide range of motors. After years′ development, we have several branches, offices and marketing centers around the country.
With an investment of 1094 million yuan, the company covers an area of 270, 000m2, has over 600 sets of precision production equipment, with annual production capacity of 8000000 KW.
At present, we have about 400 staffs, including 18% engineers and technical specialists, drives innovation and excellence. Leveraging decades of experience, we design and manufacture low-voltage, medium-voltage, and high-voltage motors tailored to customer needs.

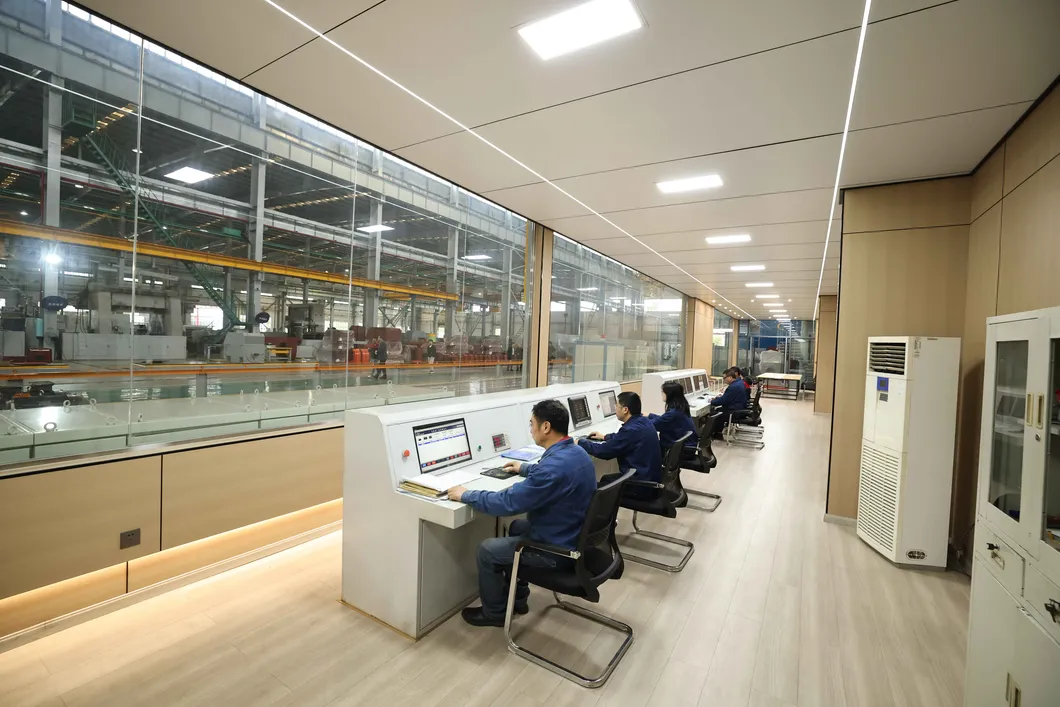

Our testing center is an authorized test station of China National Quality Inspection Center, is responsible for the quality supervision and sampling inspection of motor products of various motor manufacturers in Central and Southern China. We can test 100 series of high and low voltage motors.
Our products include synchronous/asynchronous motors, high efficiency motors, premium efficiency motors, explosion proof motors, special motors, variable frequency speed regulation motors, ultra-high speed motors, wound rotor slip ring motors, large-sized vertical circulating pump motors, etc.

Quality Control

In-process Inspection/ Quality Control
All the measuring apparatus and instruments are calibrated each year.
Quality control for each item

Test Items
Each motor must be tested before leaving the factory. After the motor is qualified, the motor can be shipped out. Each motor will have a test report.

Warranty Period

Standard warranty: 12 months after commissioning, or 18 months after delivery, whichever comes first.
If you would like to extend the warranty period, it is allowed, please contact us for more details.
