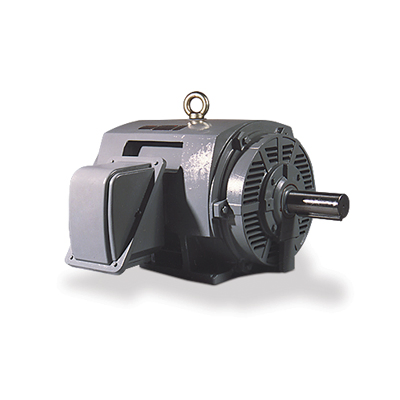

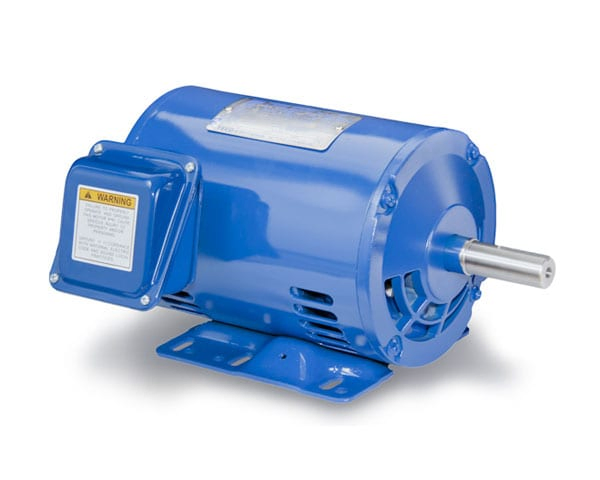

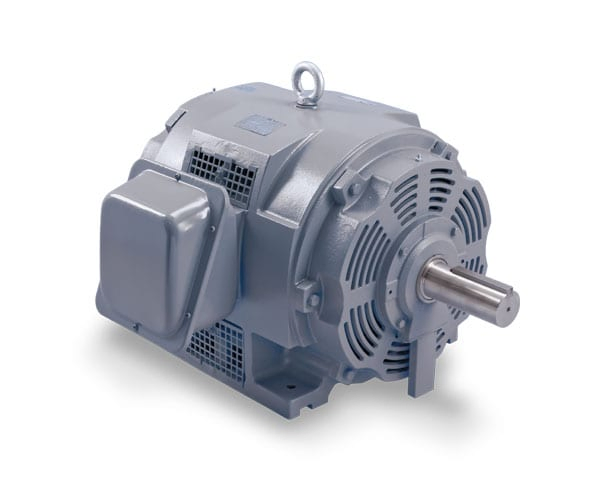

Odp Motor, 3HP, 182t, 460V, 575V, 1800rpm, NEMA Premium Motor

1 Views

Customization:Available
Application:Industrial, Universal
Operating Speed:Constant Speed

Get A Free Quote

Category :

ODP Motors

Description

Basic Info.

Model NO.	CLNB-182T-4-3HP
Species	NEMA Odp
Casing Protection	Odp
Starting Mode	Direct on-line Starting
Output Range	3HP to 350HP
Voltages	208V/230V/415V/460V/575V
Cooling Method	IC411
Insulation Class	F
Color	Can Be Customized
Enclosure	Odp

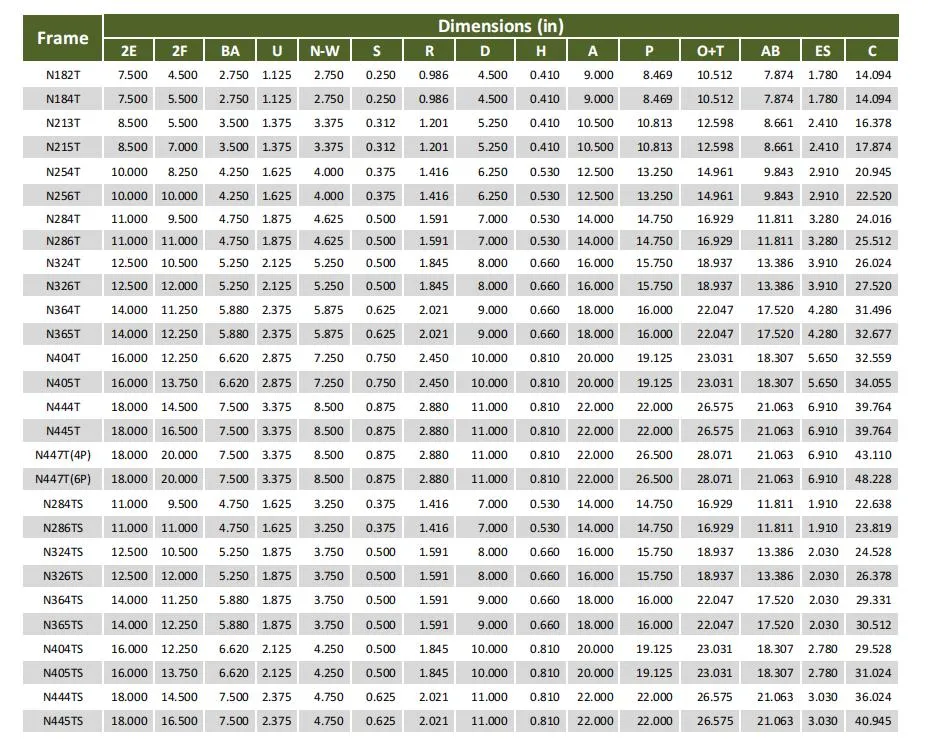

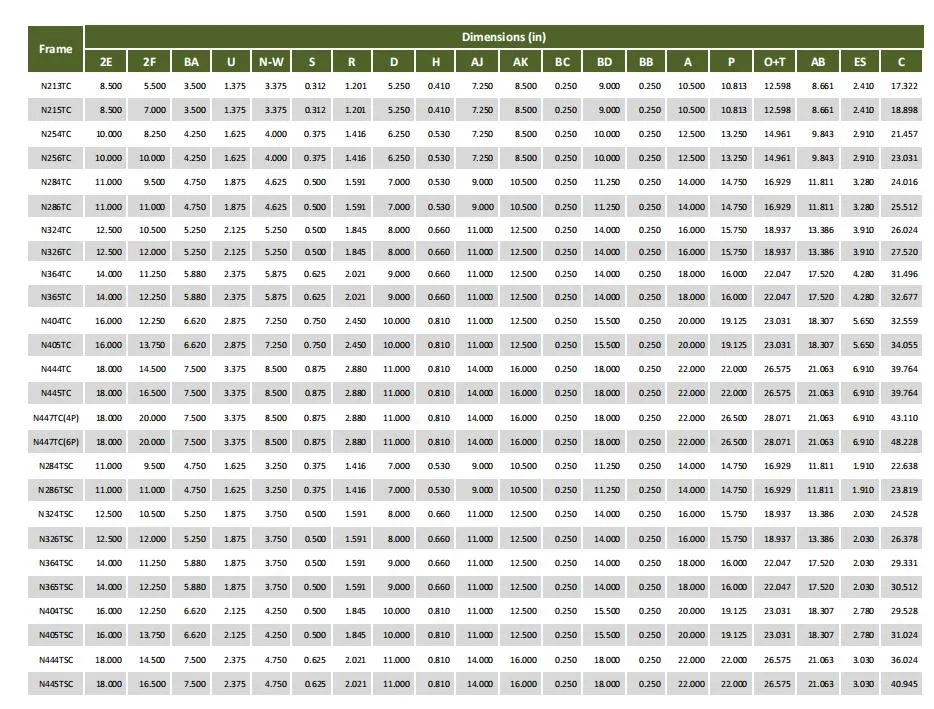

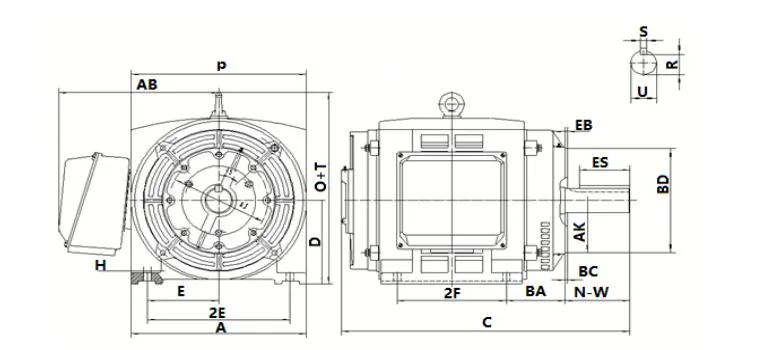

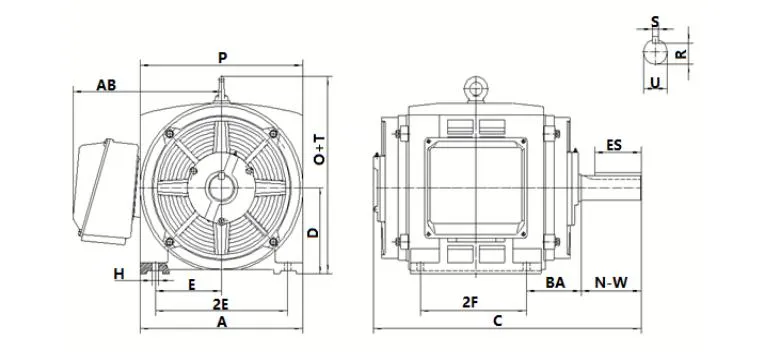

Frame Size	182t-449t
Mounting	F1/F2/C
Specification	3HP-350HP
HS Code	8501520090
Number of Stator	Three-Phase
Rotor Structure	Squirrel-Cage
Number of Poles	2-8p
Certification	ISO9001, CCC, UL/CSA
Frequency	60Hz
Inverter Use	Suitable for Inverter Use
Rotation Direction	Cw/Ccw
Service Factor	1.15
Design Standard	NEMA B
Duty	S1
Standard	NEMA Mg1
Transport Package	Standard Seaworthy Packing
Origin	China
Production Capacity	5000000

Product Description

NENA Open Drip Proof motors are NEMA Premium efficiency motors.The motors are UL/CSA-certified, have such advantages as premium efficiency, low noise, little vibration, safe and reliable operation. The power ratings, mounting dimensions and electrical performances meet the requirements of latest NEMA MG1 standards. They can be used to drive blowers, compressors, pumps, fans, crushers, blowers, ventilators, and other general purpose applications, etc. We can customize the motor as per your request accordingto the acutal condition on site, if you need special requirements please contact us for more details.

Applications
Fans
Conveyors
Industrial machines
Compressors
Blowers
Pumps
Other general purpose applications

Features

Preminum efficient ratings

Housing: cast iron construction

Suitable for inverter-use

F insulation

50Hz/60Hz

NEMA MG1 standard

Service factor: 1.15

Voltage: 208/230V/415V/460V/575V

Protection: TEFC, IP55

Ambient temperature: up to 55ºC

UL/CSA certified

Stator
High quality cold rolled silicon lamination and copper wires

Vacuum pressure impregnated (VPI) treatment

Excellent mechanical and electrical performances

Packaging & Shipping

Standard seaworthy package for export
Plywood package or wooden fumigation package
Suitable for long distance transportation by sea

Our Advantages

Premium effiency

Excellent starting performance

Available to all industry segments and applications in global supply

Highest reliability to minimize operation cost from downtime

High flexibility with customizable design

Support to witness FAT on site/online

Quality Control

Quality Control
All the measuring apparatus and instruments are calibrated each year.Each coil will be tested during the production
Quality control for each item and each step to make sure the quality

Test

Routine test or type test upon request for each motor will be conducted before leaving the factory. After the motor is qualified, the motor can be packed and shipped out. Each motor will have a test report.

After Sales Service

Standard warranty: 12 months after commissioning, or 18 months after delivery, whichever comes first.

If you would like to extend the warranty period to 5 years or longer, it is possible, please contact us for details.
